    ACROTECH FIVET TYPE CONVEYORS

    Fivet tip konveyör kardan rayında fivet zincirinin, üç eksende hareket ettirilmesi esasına bağlıdır.
    Fivet type drive units are built as top-driven caterpillar unites with torque safety. Chain pitch is 300 mm or its multiples. Thanks to the central lubricating unit included on the system, roller bearings of the chain are automatically lubricated in desired periods. Torque limiters are used in order to protect the system in cases of jamming and excessive forces. Roller bearings mounted on the chain are capable of resisting 250 centigrade. Either spring or screw tensioning system can be used for conveyor chain tensioning. Fivet conveyor rail is specially made of bended metal sheets. Multiple drive units are used for long conveyor systems and all drive units are synchronized.

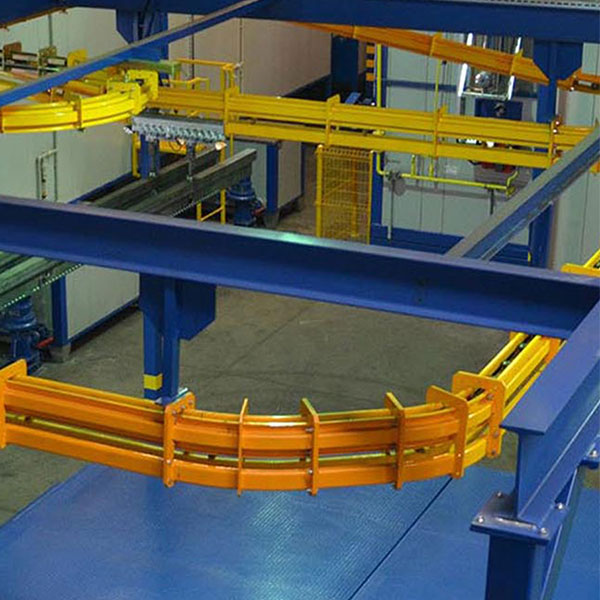

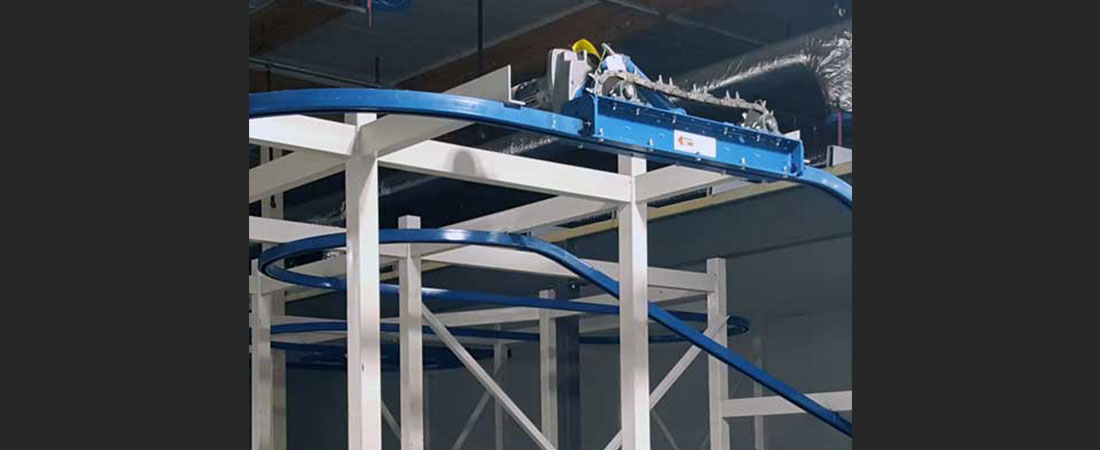

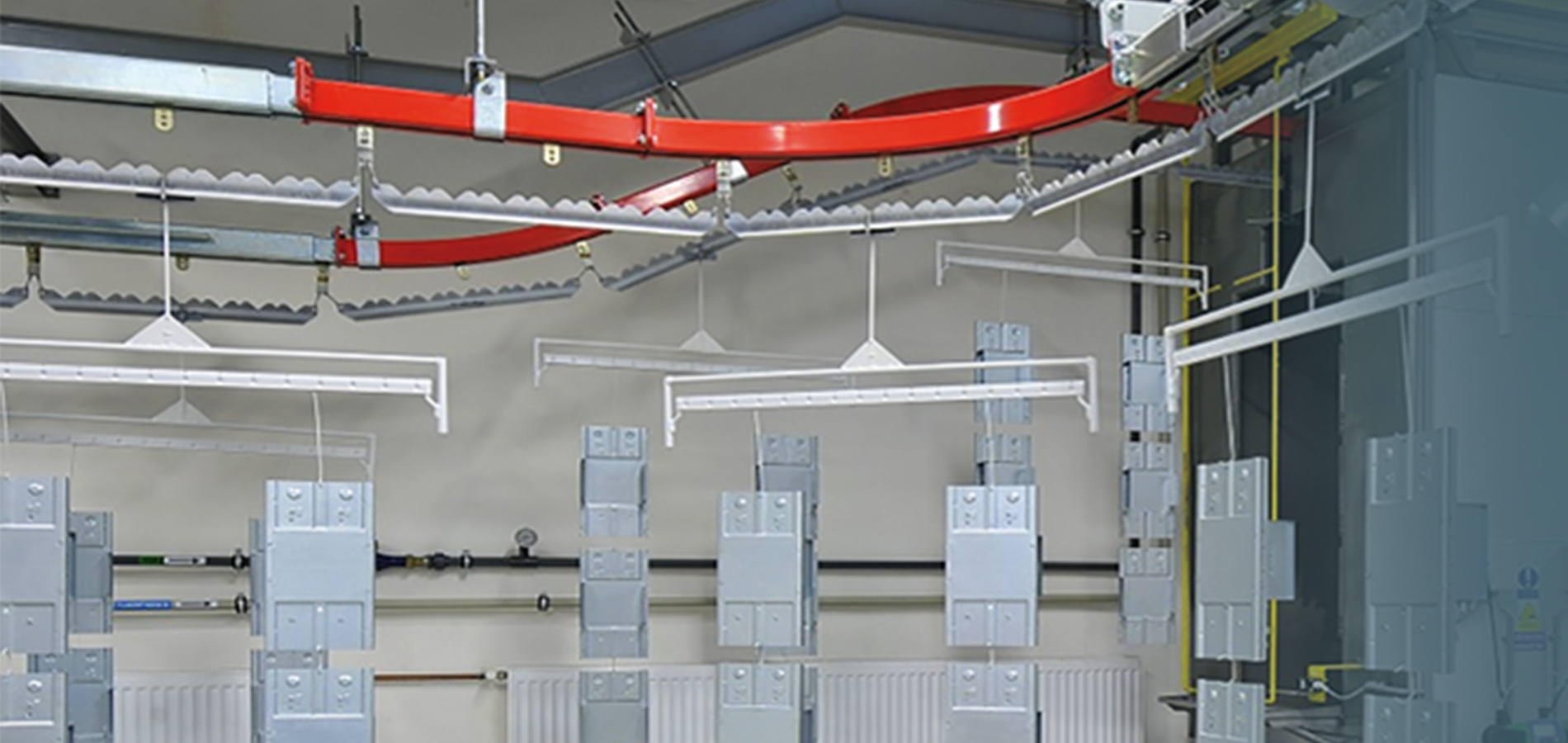

    Product Pictures

    There are three product types which can be chosen depending on the needs of application.

    1- Light Type AC 2 :
    Load capacity of 20 kg
    2- Middle Type AC5 :
    Load capacity of 50 kg
    3- Heavy Type AC 7 :
    Load capacity of 100 kg

    Standard features of our Fıvet Conveyors

    • Top driven with a caterpillar type drive unit
    • 1500 mm chain pitch, European made roller bearings, conveyor chain with universal joints
    • Specially bended conveyor rails with fivet type fixing flanges
    • Fivet type tensioning stations with 90 and 180 degrees of turn
    • Fivet type profiles with 90 and 180 degrees of turn
    • Fivet type up and down profiles ( Light Type AC 2 )
    • Cardan type up and down profiles(Middle Tip AC 5 ve Heavy Type AC 7)
