ACROTECH Pallet Conveyor Baking Ovens

ACROTECH Pallet Conveyor Cooking Ovens are based on the principle of cooking the workpiece that will be treated with pride to the oven conveyor.

Pallet conveyor furnaces operate as semi-automotive. Thanks to the right engineering and reinforced insulation, heat savings are maximized. Palette Type Ovens are not run from the ground like Box type ovens. The products grouped by pallet conveyor mounted on the oven ceiling are automatically directed into the oven. Thanks to this feature, problems arising from the ground are eliminated. Pallet Type Conveyor Ovens take up less space than Continue ovens but occupy more space in Box ovens. Due to the low investment cost and usage advantages in the industry; performs curing of many products such as steel doors, chairs, tables, aluminum profiles, steel cabinets, electrical and automotive industries after painting. ACROTECH Heating Exchangers are designed on the basis of maximum efficiency, minimum fuel consumption. Our thermoblocks mounted on the back of the furnace can increase the furnace temperature from ambient temperature to + 230 ºC. ACROTECH Heating Exchangers are made of 310 quality Stainless Steel material and are resistant up to 1000 ºC.

The smoke pipes used in the thermoblock are normalized seamless smoke pipes. Thermo block is placed inside the combustion chamber. 150mm. It is isolated with rock wool. There is an intervention cover for the combustion chamber against thermoblock failures. Heat in the combustion chamber There is a turbine fan scattered inside the oven. Thanks to the peep hole on the thermoblock, the combustion efficiency is controlled. Also, precautions are taken against gas and diesel oil jams in the Thermoblock.

LESS FUEL CONSUMPTION

In this way, our cooking ovens consume less fuel and do not heat the working environment more than necessary. There is a radiant type fan that provides air circulation in the cooking oven, thanks to the air ducts and ducts placed over the ducts. A homogeneous heat distribution is carried out in the oven. Temperature control is done by thermocouple placed in the oven. ACROTECH Pallet Conveyor Cooking and Drying Ovens automatically signal when it reaches the desired temperature and 0-230 ° C via digital clock on the temperature control panel of the baking oven. can be adjusted up to.

Palette Type Cooking and Drying Ovens

ACROTECH Pallet Type Cooking and Drying Ovens are installed on sandwich chassis and disassembled. The inner part of the baking oven is made of 1.2mm ST 37 Galvanized and the outer part of the oven is made of 1.2mm ST 37 material. Oven outer sheet is coated with electrostatic powder paint and corrosion resistance is increased.

Insulation Material

Baking oven panels 150mm as standard. It is insulated with insulation material. The section coming to the interior of the oven panels is 50mm. rock wool, the part that comes to the outer part is 120mm. It is insulated with glass wool and due to this insulation feature in the baking oven, the heat losses do not exceed ± 10 ° C above the ambient temperature.

All work done is checked by our engineers.

UFK OVEN DIMENSIONS

ACROTECH Pallet Conveyor Baking Ovens

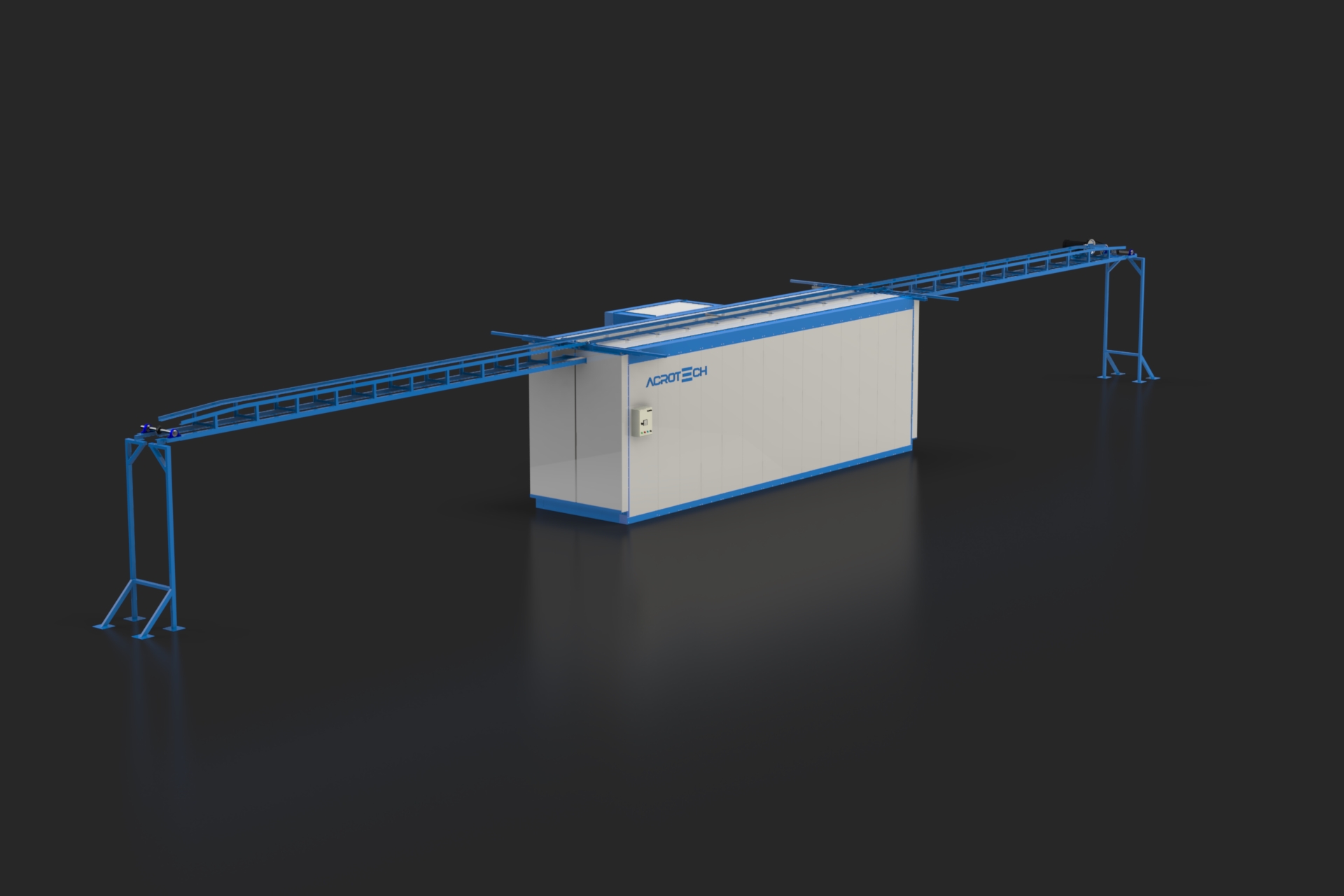

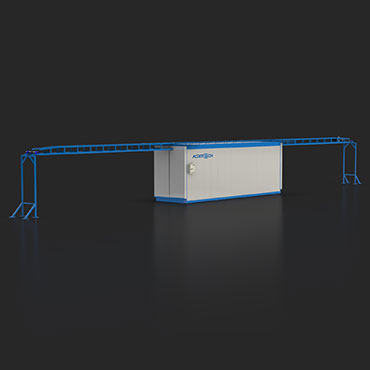

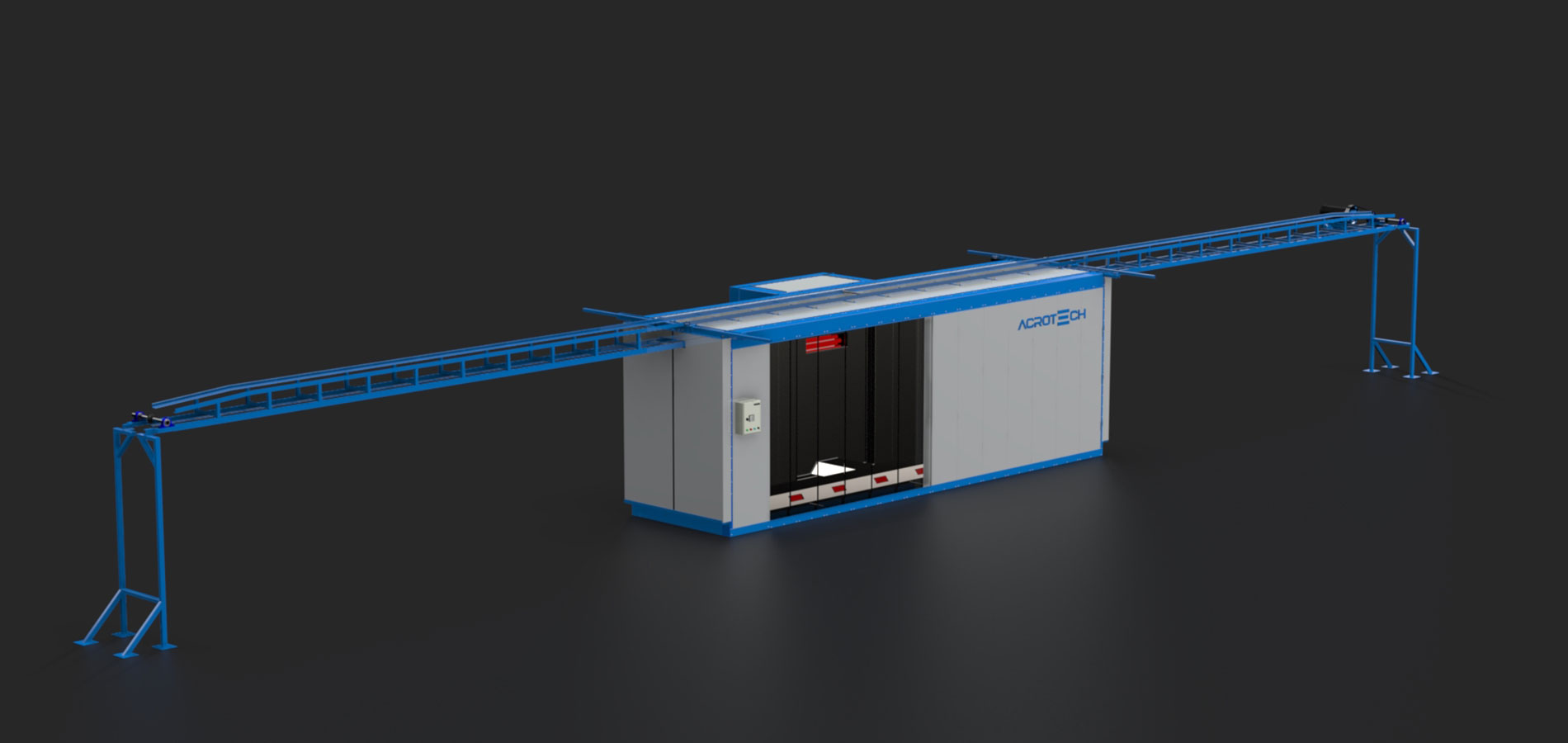

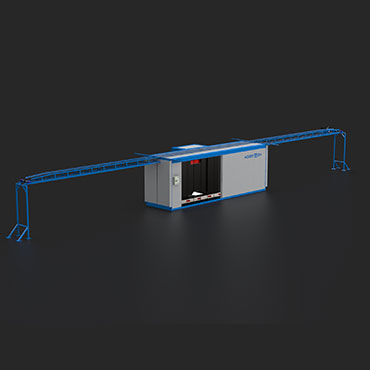

ACROTECH UFK TYPE OVENS PHOTOS
